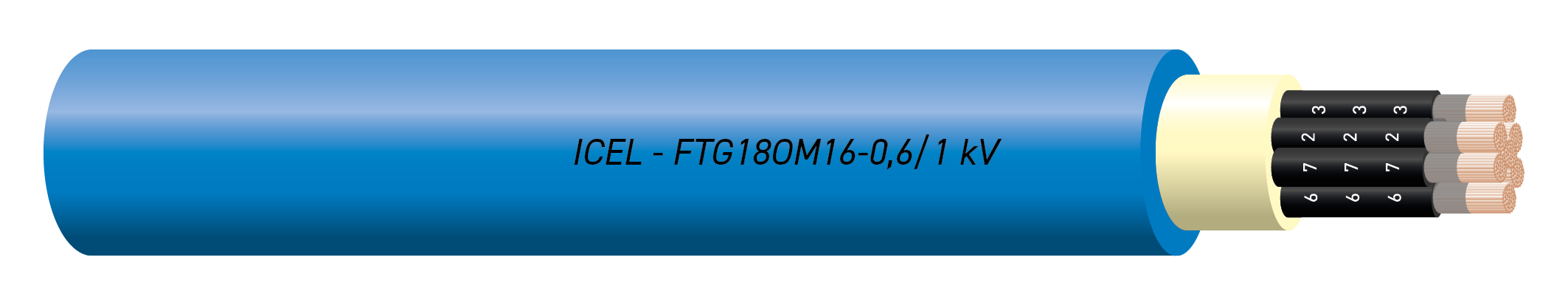

FTG18OM16–0,6/1 kV control and signals No Burn No Smoke
Fire-resistant, control and signals multicore cables , insulated with G18 rubber, under M16 thermoplastic sheath, with flexible conductors for fixed installation. Fire retardant and low development of toxic and corrosive fumes and gases.

Suitable for bundle installations in environments at higher risk in case of fire due to the high crowding density or the high displacement time in case of fire, or for the high damage to animals and things such as, for example, air terminals , railway stations, harbour stations, subways, road and rail tunnels, as per Standard CEI 64-8: V4 section 751.04.3a having reaction class to fire B2ca-s1a, d1, a1. For cables installed in railway tunnels falling within the field of application of UERegulation 1303/2014, refer to the requirements given by the regulation itself. Suitable for indoor or outdoor environments, even wet, for fixed installation in laying air, in pipes or ducts, on masonry and metal structures or suspended; buried installation allowed. Further instructions and warnings for the use of these cables are given in the CEI 20-67 standard.

The “noBurn” cables IEMMEQU certified are marked CEI 20-45 (PH 120) to indicate the fire-resistance in accordance with CEI EN 50200 and CEI EN 50362 standards which provide for a minimum operation time of the cable under test, subjected to direct fire and mechanical shock, 120 minutes at 820°C;
