H1Z2Z2-K

Reaction to Fire CPR: Dca-s1,d2,a1

H1Z2Z2-K All Sun

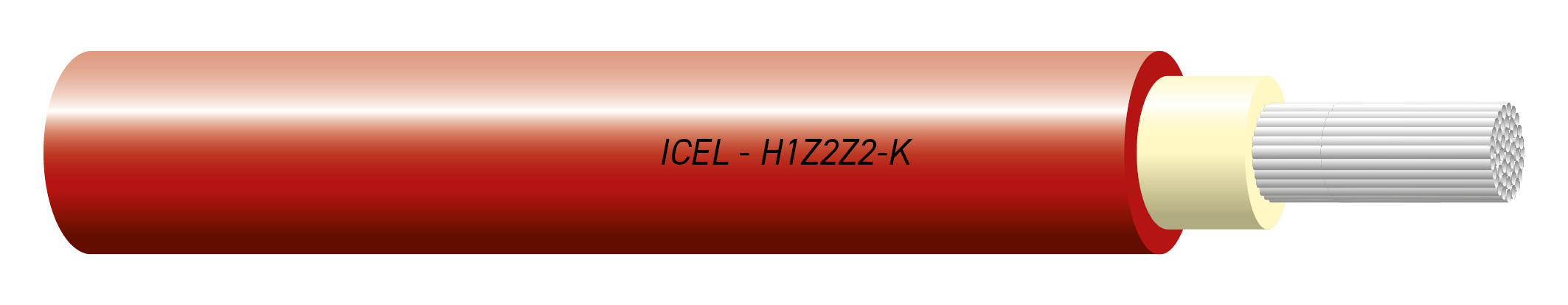

Single core power cables  for fixed photovoltaic systems, rubber insulation type Z2, rubber sheath type Z2, with flexible tinned conductors. Resistant to flam propagation having low emission of smoke and toxic and corrosive gases when exposed to fire.

To be used for photovoltaic systems according to the indication given by the standard CEI 64-8 section 712 (HD 60364-7-712). For intended use:
- outdoor and indoor permanent installation, for free movable, free hanging and fixed installation
- installation in conduits and trunkings on, in or under plaster as well as in appliances;
- for the application in equipment with protective insulation (protection class II).
- also for underground installation
They are inherently short-circuit to ground proof according to HD 60364-5-52.

.
.
.



H1Z2Z2-K Technical Sheet


.
